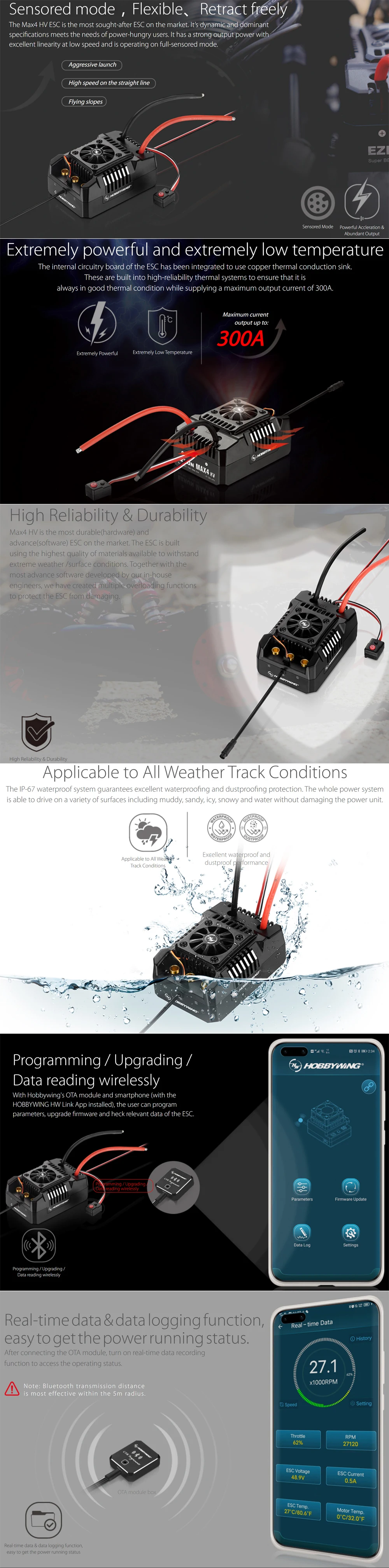

ESC parameters:
Type: Inductive brushless ESC
Continuous/peak current: 300A/2000A
Battery Support: 6-12S LiPo
BEC output: 6V/7.4V/8.4V adjustable, continuous current 10A
Cooling fan: 50*50*15mm
Parameter programming method: support LED programming box, support LCD programming box, support OTA Programmer, support WiFi Express wireless module
Programming interface: shared interface with cooling fan
Power plug: none
Power Cord: Red/Black – 8AWG
Dimensions: 125mmx85mmx61.7mm
Weight: 775.4g

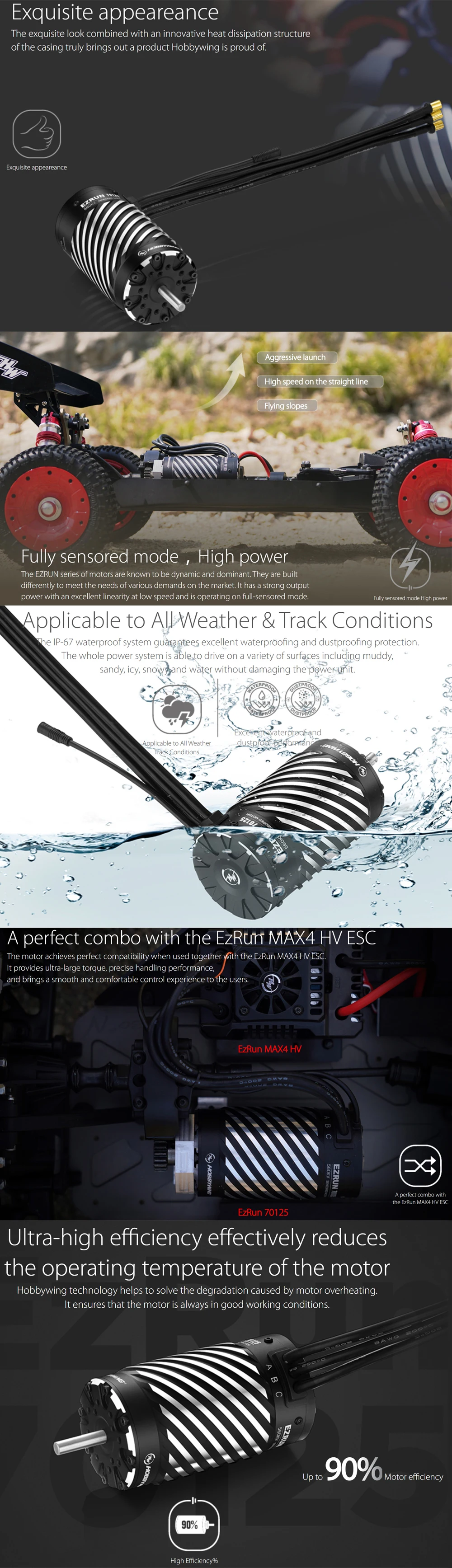

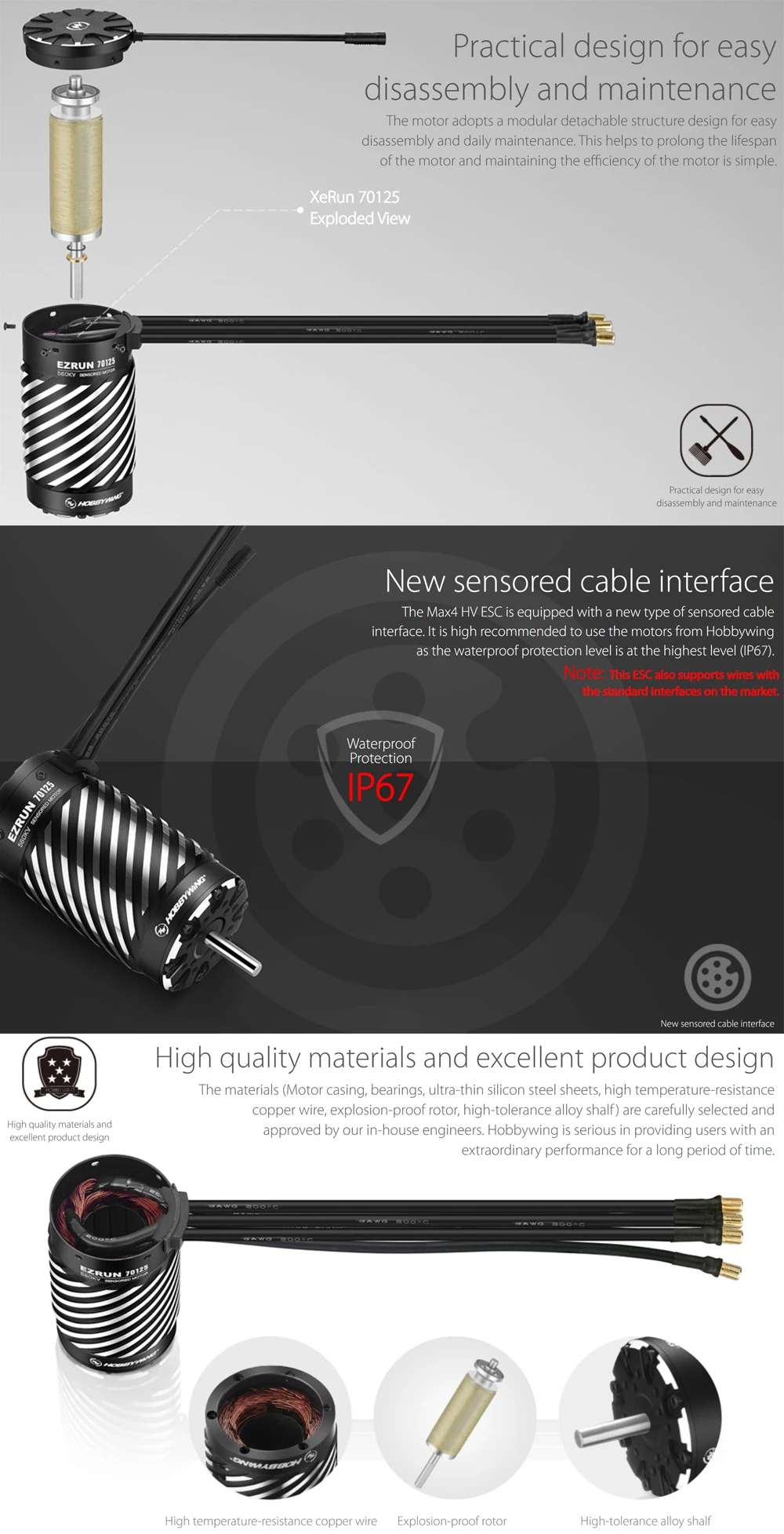

70125SD motor parameters:
Model: EZRUN-70125SD
Type: Inductive brushless motor
Number of poles: 4 poles
KV value: 560KV
Battery Support: 8-12S LiPo
No-load current: 3.6A
Outer diameter: 70mm
Length: 125mm
Shaft diameter: 8mm
Weight: 1995g
Applications KV Rating/T Count: 12S LiPo: KV ≤ 600KV(70125 Size Motors);
Motor:
Product Name: EZRUN 70125SD;
KV Rating: 560KV;
LiPo Cells: 8-12S;
No-load Current(A): 3.6A;
Scale: 1/5th;
Brushed/Brushless: Brushless;
Sensored/Sensorless: Sensored;
Pole Count: 4;
Motor O.D.(mm): 70;
Length (mm): 125;
Shaft Diameter (mm): 8;
Weight (g): 1995g;
Front Bearing: D22*D8*T7;
Rear Bearing: D22*D8*T7;
Applications: 1/5th Heavy-duty Off-road, Truck.
