Features:

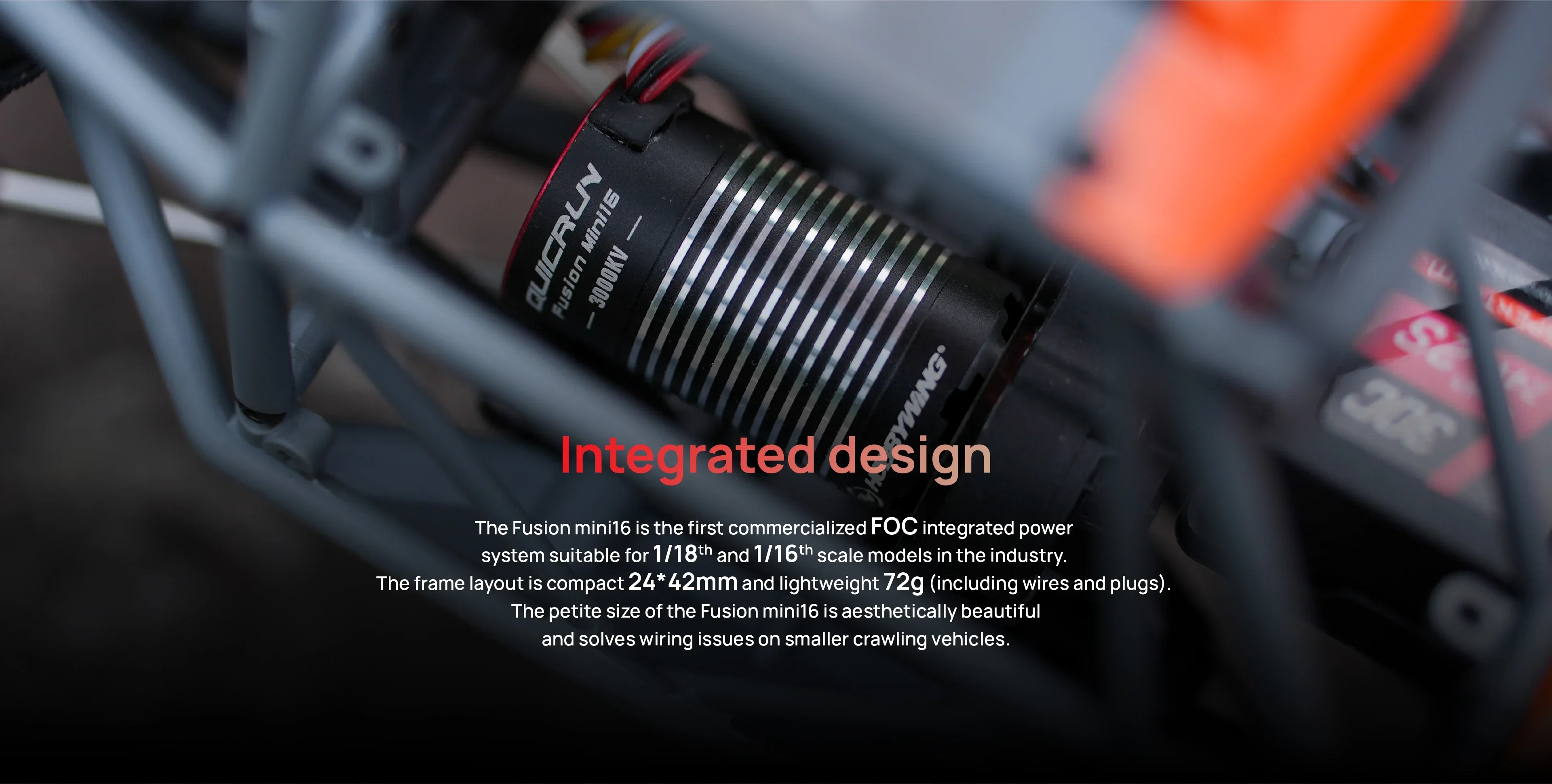

1. One-piece design: The petite size of the Fusion mini16 is aesthetically beautiful and solves wiring issues on smaller crawling vehicles

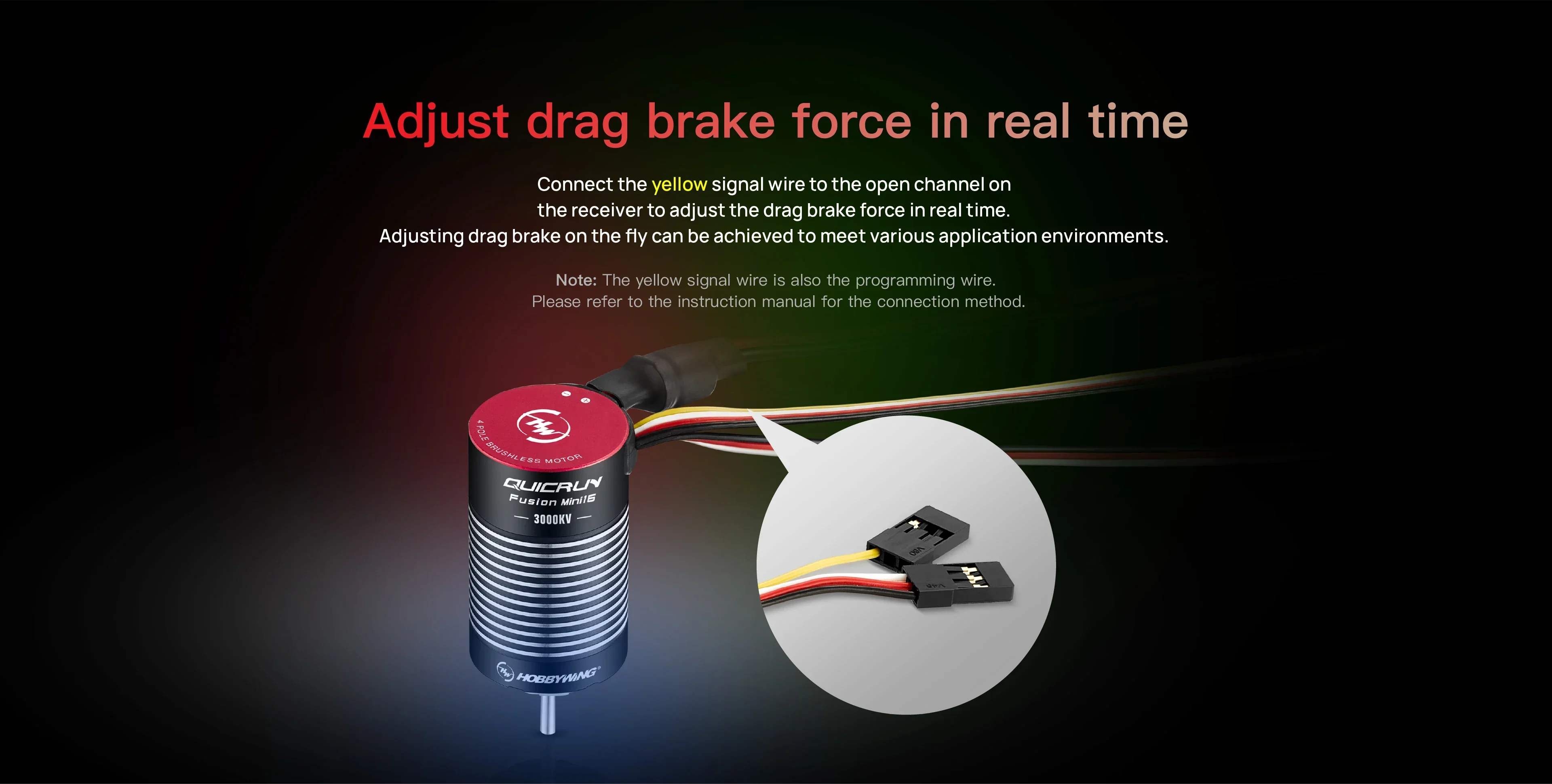

2. Adjust drag brake force in real time,Connect the yellow signal wire to the open channel onthe receiver to adjust the drag brake force in real time

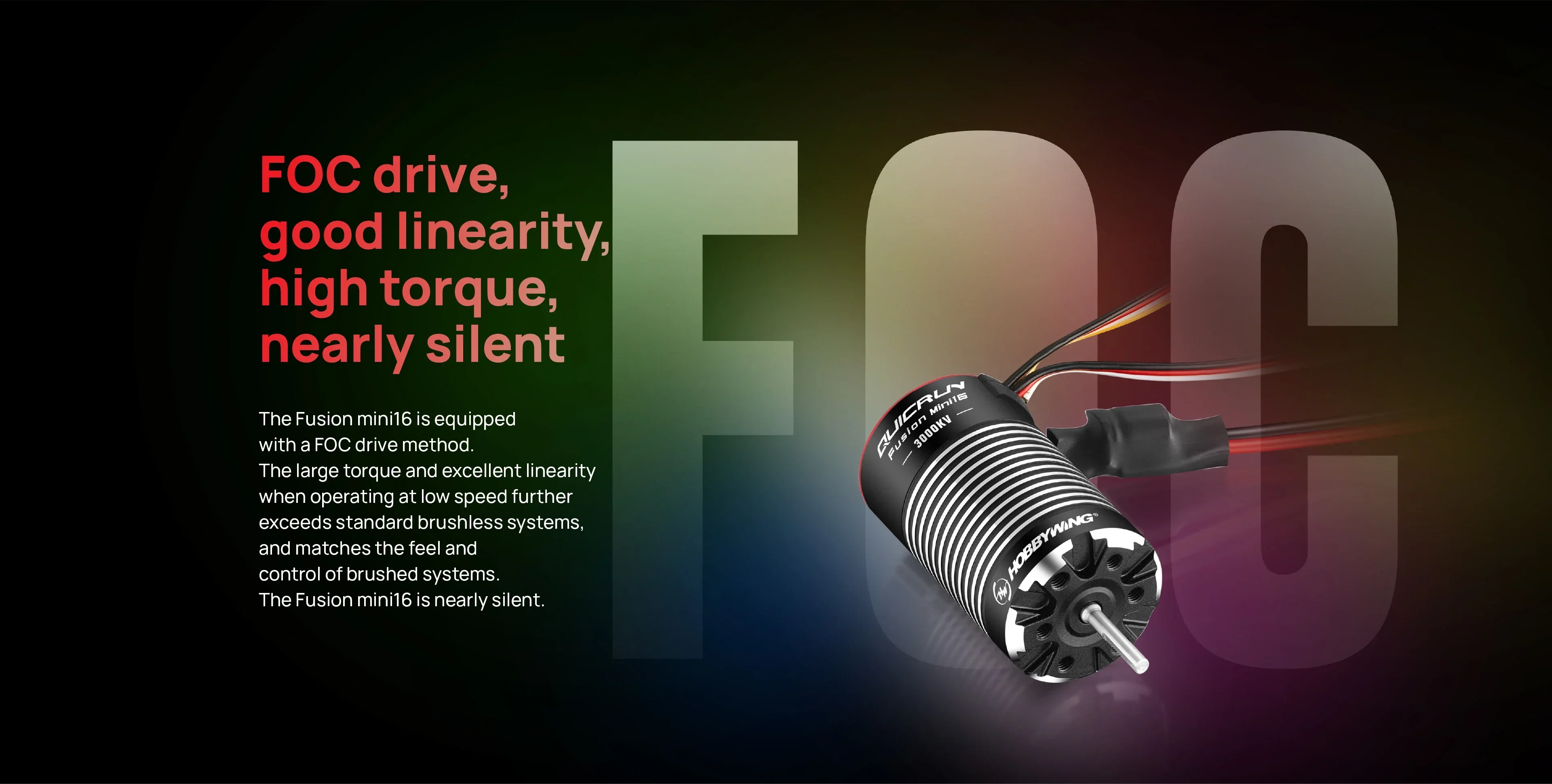

3. FOC drive,good linearity,high torque,nearly silent
4. Smart torque output & closed-loop Speed control for Easy control
5. IP66 protection level,lt has excellent waterproofing and dust-proofing performanceto cope with complex and various running conditions
6. Super Internal BEC,continuous current of 4A,Maximum current of 10A,The output voltage is switchable between 6V/7.4V

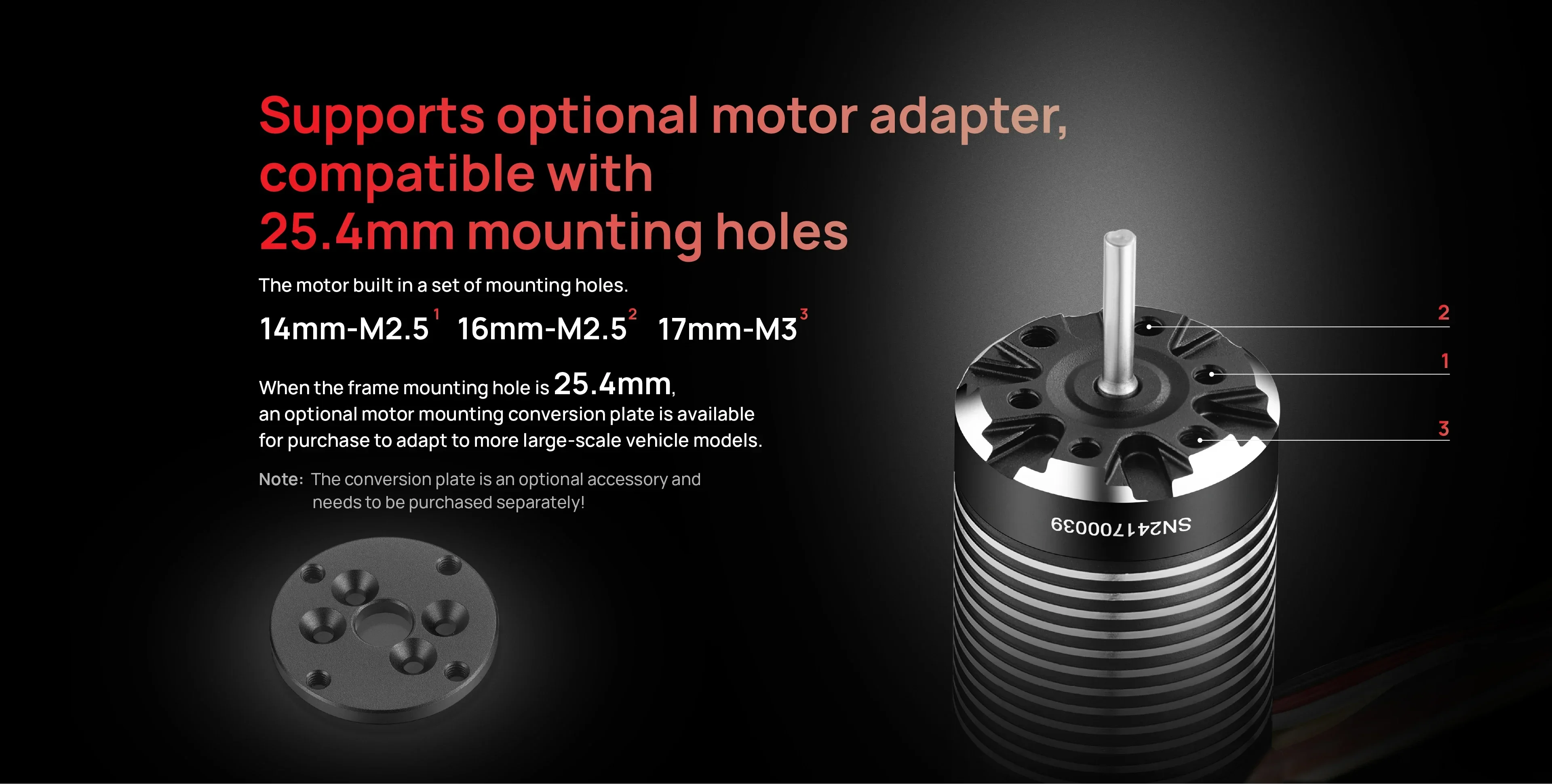

7. Supports optional motor adapter:compatible with25.4mm mounting holes
8. The motor built in a set of mounting holes: 14mm-M2.5/16mm-M2.5/17mm-M3

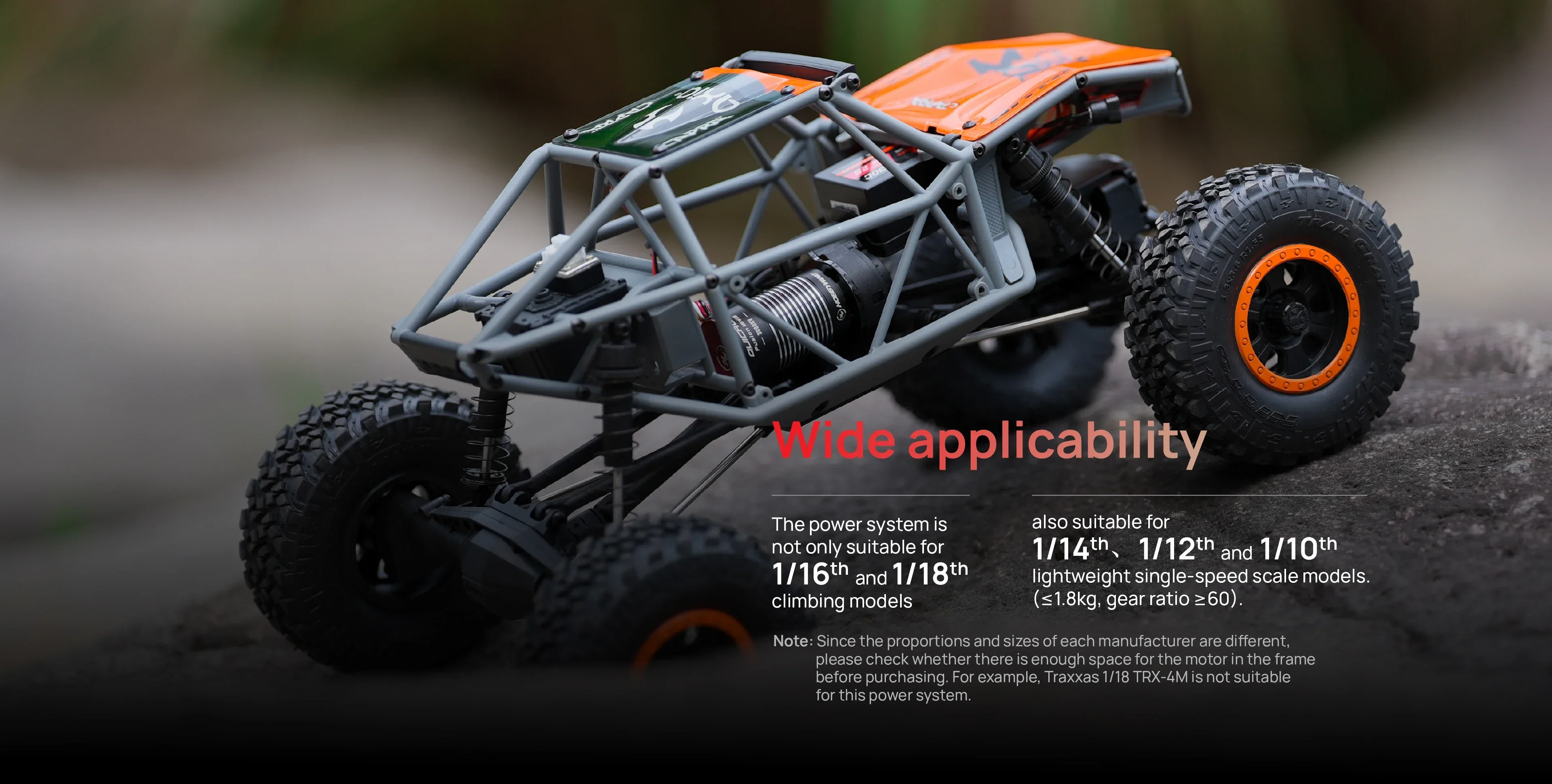

9. Wide Applicability: for 1/16 1/18 climbing models,also suitable for 1/14,1/12 and 1/10 lightweight single-speec scale models(≦1.8kg, gear ratio≧60)
1. One-piece design: The petite size of the Fusion mini16 is aesthetically beautiful and solves wiring issues on smaller crawling vehicles
2. Adjust drag brake force in real time,Connect the yellow signal wire to the open channel onthe receiver to adjust the drag brake force in real time
3. FOC drive,good linearity,high torque,nearly silent
4. Smart torque output & closed-loop Speed control for Easy control
5. IP66 protection level,lt has excellent waterproofing and dust-proofing performanceto cope with complex and various running conditions
6. Super Internal BEC,continuous current of 4A,Maximum current of 10A,The output voltage is switchable between 6V/7.4V
7. Supports optional motor adapter:compatible with25.4mm mounting holes
8. The motor built in a set of mounting holes: 14mm-M2.5/16mm-M2.5/17mm-M3
9. Wide Applicability: for 1/16 1/18 climbing models,also suitable for 1/14,1/12 and 1/10 lightweight single-speec scale models(≦1.8kg, gear ratio≧60)
Specifications:

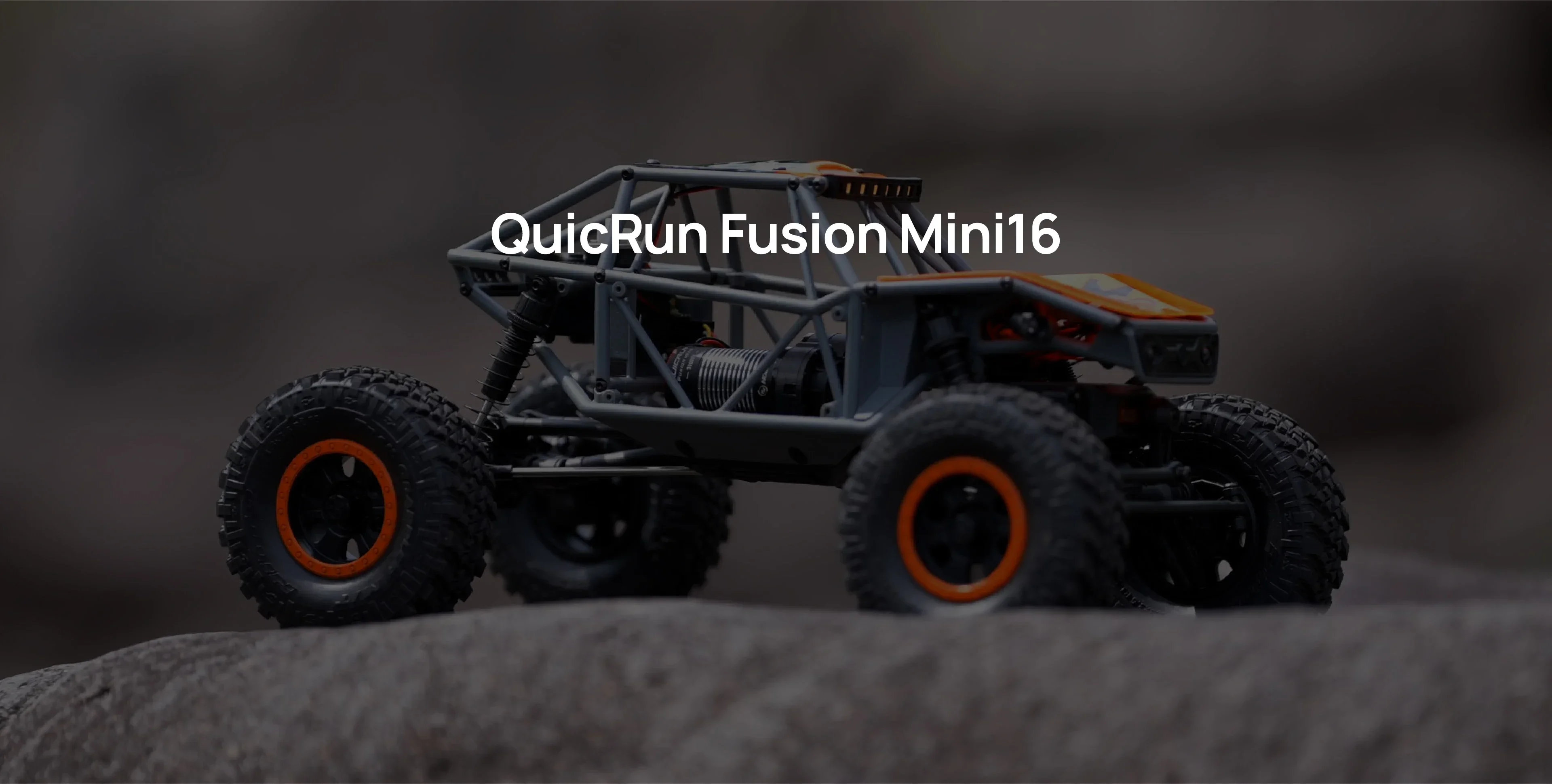

model: QuicRun fusion Mini16
Model Continuous: 30A
Peak Current: 80A
Main applications:1/16&1/18 Crawier
Lipo Cells: 2-3S Lipo,6-9cells NiMH
BEC output: 6V/7.4V 4A
Size: 42mm*24mm
Weight: 72g(including wire&connectors)

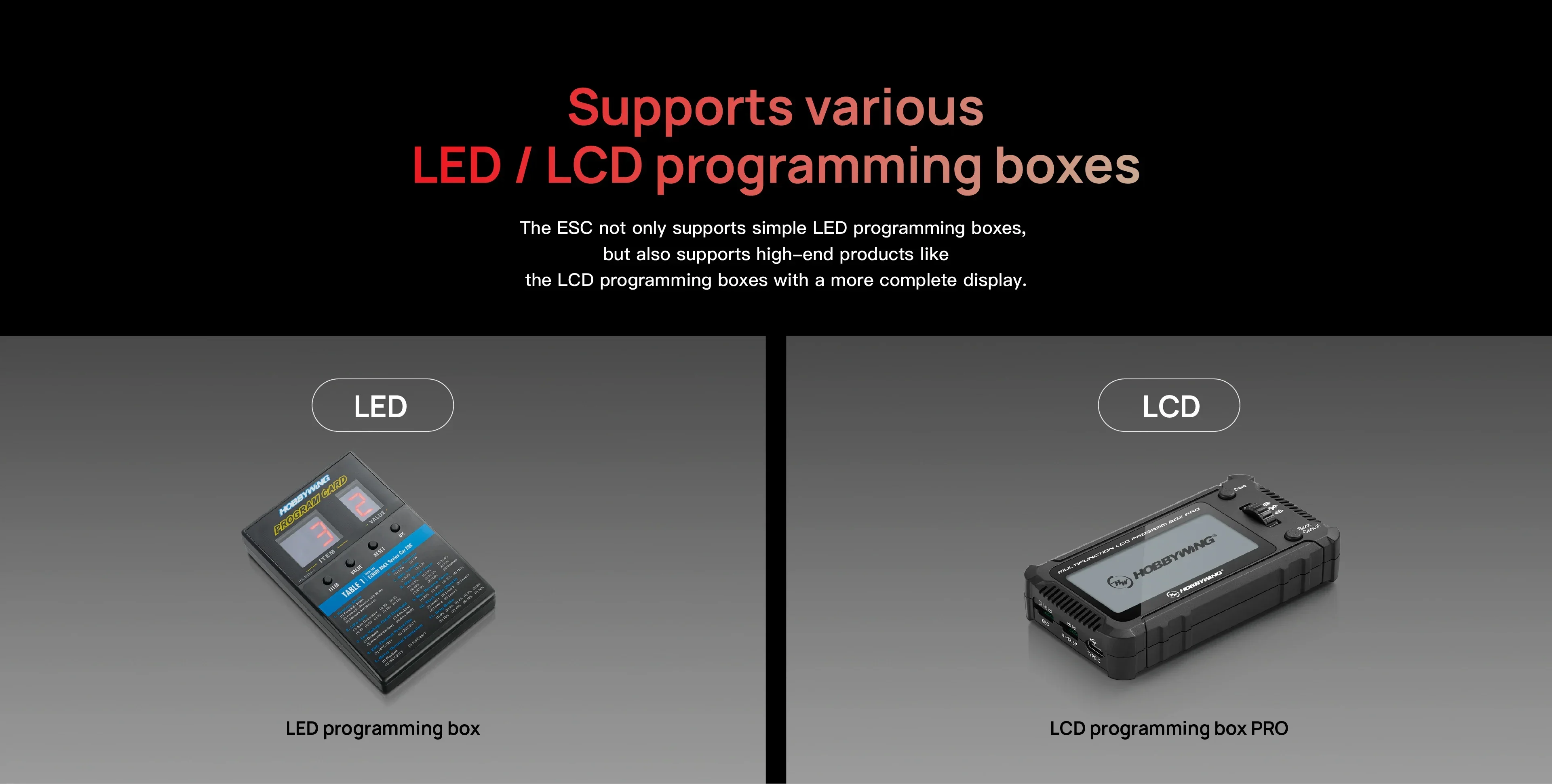

Programming port: independent programming cable
Motor KV: 3000KV
Diameter :24mm
Length of motor:42mm
Shaft diameter: 2.3mm
Exposed shaft length: 13.5mm
Motor Poles: 4
Built-in three sets of mounting holes: 14mm-M2.5/16mm-M2.5/17mm-M3
Package Contents:
1*QUICRUN Fusion Mini16 Motor
